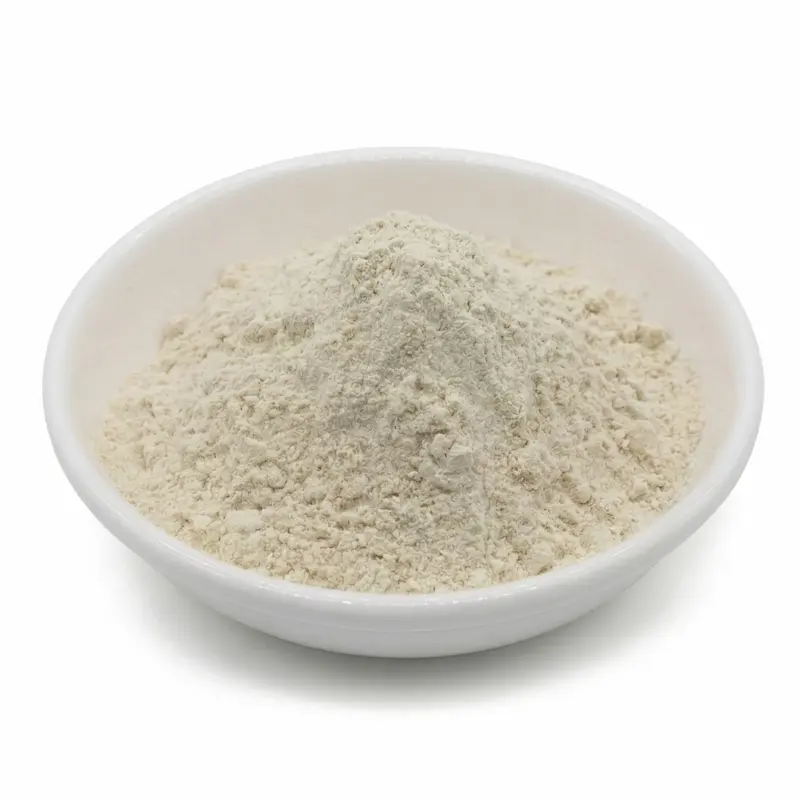

High Methoxyl Apple Pectin Powder | Standardized DE 60%-75%

What is High Methoxyl Apple Pectin?

High Methoxyl Apple Pectin is a compendial-grade botanical hydrocolloid extracted from Malus domestica pomace, standardized to a Degree of Esterification (DE) of 60%–75%. Operating via hydrogen bonding and hydrophobic junctions, this carbohydrate polymer constructs a thermally reversible gel exclusively within formulations maintaining soluble solids of TSS ≥ 55%–65% and acidic processing boundaries of pH 2.5–3.8. It functions as a clean-label gelling agent and rheology modifier across automated solid and confectionery lines.

Green Spring Technology processes this botanical substrate under automated acid-alcohol precipitation matrices, ensuring strict compliance with EU Commission Regulation No 231/2012 for E440 purity criteria. Structurally mitigating elemental impurities via ICP-MS to ensure Pb ≤ 2.0 ppm and As ≤ 1.5 ppm, the extraction process is conducted within production facilities independently audited and certified to BRCGS (Grade A) and IFS (Higher Level) quality management frameworks to support standard vendor qualification workflows.

The material is physically re-engineered into free-flowing, dust-free 60 to 80 mesh granules to delay initial surface hydration velocity during large-scale industrial liquid dispersion. Calibrated to a stable 150 SAG Grade ± 5, this specific particle geometry shifts the wet-out window, completely eliminating fish-eye clumping and premature gelation inside bulk transfer tubes to secure uniform deposit mass tolerances on high-speed functional gummy depositing machinery.

Specification:

Quality & Compliance

• Thermal & Bake Stability: Standardized to maintain high-temperature viscosity stability across commercial baking and starchless molding operations, structurally limiting boiling out or gel matrix collapse during continuous industrial thermal processing.

• Standardized Rheology Control: Quantified to deliver a controlled gel strength of 150 ± 5 USA-SAG, enabling downstream formulation chemists to achieve uniform viscoelastic profiles across consecutive manufacturing batches.

• Syneresis Mitigation under Acidic Profiles: Formulated to perform within critical low pH boundaries (2.5–3.8), cross-linking to bind free water and control syneresis throughout the designated product shelf life.

• Pipeline Dispersion Mechanics: Engineered strictly to a 60–80 mesh granulated particle size distribution, balancing hydration kinetics to eliminate localized hydrocolloid agglomeration and mechanical pipeline occlusion in automatic slurry transfer lines.

• Operational Energy Cost Efficiency: The uniform dissolution velocity reduces required continuous blending durations and thermal inputs under standard agitation, lowering macro-plant utility expenditures per production batch.

• Organoleptic Neutrality: Refined to achieve light transmission transparency without altering the original taste or odor profile of the matrix, ensuring unmasked flavor release in functional confectionery matrices.

Key Advantages

• Thermal Viscosity Phase Stability: Standardized to maintain structural viscosity across commercial baking and starchless confectionery molding lines, limiting thermal degradation, boiling out, or macro-gel matrix collapse during continuous high-temperature commercial processing phases.

• Batch-to-Batch Viscoelastic Calibration: Engineered to deliver a regulated gel strength matrix calibrated to 150 ± 5 USA-SAG, providing predictable rheological yield stress for formulation chemists to secure uniform deposit weight profiles across sequential automated manufacturing cycles.

• Macro-Syneresis Control under Acidic Equilibriums: Chemically stable within strict low pH processing boundaries (2.5–3.8), the carbohydrate polymer network optimizes bound-water retention to control moisture phase separation and physical syneresis throughout the designated shelf life.

• Automated Slurry Transfer Fluidity: Milled strictly to a 60–80 mesh granulated particle size distribution, balancing cold-water hydration velocity to prevent superficial core-shell hydration layer development, thereby eliminating localized mechanical agglomeration and fluid occlusion inside automated stainless-steel slurry transfer pipelines.

• Batch Extrusion Thermal Conservation: The calibrated hydration kinetics lower standard dissolution residency durations and continuous blending thermal thresholds under fixed-shear mechanical agitation, driving a measurable reduction in net utility kilowatt expenditures per production batch.

• Organoleptic Dispersion Neutrality: Refined to facilitate light transmission clarity without altering the baseline sensory profile of the carrier matrix, preventing competitive odor or taste masking during multi-ingredient flavor release profiles in functional confectionery bases.

Applications

• Nutraceutical Gummy Chewables: Formulated for solid dosage vitamin, mineral, and botanical functional gummies processed via high-speed starchless deposition lines. The hydrocolloid establishes a thermally reversible, elastic gel network optimizing mold release kinetics and setting velocity under rapid automated depositing sequences.

• Bake-Stable Bakery Fillings: Tailored for thermally processed fillings utilized in pocket pastries, biscuits, and fruit pies. Structurally modified to withstand continuous high-temperature commercial baking cycles, the polymer cross-links to suppress moisture migration, boiling-out, or phase degradation under mechanical shear.

• High-Solids Fruit Spreads & Jams: Designed for traditional fruit spreads, spreads, and confectionery jellies engineered to function within strict industrial processing boundaries of TSS ≥ 55%–65% and acidic matrix equilibriums of pH 2.5–3.8. It initiates a resilient carbohydrate grid calibrated to standard 150 ± 5 USA-SAG gelation thresholds to ensure precise cold-set spreadability.

• Acidified Dairy & Peptide Alternative Beverages: Functions as an electrostatic protein network stabilizer in low-pH drinkable yogurts and acidified whey alternative fluids. At processing pH levels below the isoelectric point of proteins, the polysaccharide coats casein or plant protein micelles to inhibit electrostatic aggregation, macro-phase separation, or protein precipitation during pasteurization.

• Nutritional Hydrophilic Syrups & Liquid Suspensions: Deployed as a Newtonian and non-Newtonian rheology modifier in botanical liquid extracts, oral drops, and syrup-based nutraceuticals. Provides yield stress and pseudoplastic viscosity control under continuous shear, inhibiting gravity-settling dynamics to maintain phase uniformity of suspended active phytochemicals throughout the product shelf life.

• Industrial Pastry Glazes & Barrier Mirror Gels: Tailored for automated spray-glazing systems, cake coatings, and protective fruit glazes. Forms a quick-setting, non-adhesive moisture barrier that restricts ambient evaporation and oxidation without altering the baseline color value or original organoleptic properties of the underlying food matrix.

Technical FAQ

Q1: How does the standardized 60%–75% DE range affect the continuous gelation speed and texture uniformity of Standardized High Methoxyl Apple Pectin Powder across high-speed depositor hoppers?

A1: The Degree of Esterification (DE) directly controls macromolecular setting kinetics. To prevent line synchronization bottlenecks, Green Spring Technology classifies this texturizer into two rheological sub-grades. The Rapid-set HM Apple Pectin sub-grade (DE 70%–75%) initiates thermal gelation at 80°C–85°C within 10–15 minutes, preventing particulate flotation in thick fruit spreads. The Slow-set HM Apple Pectin sub-grade (DE 60%–65%) lowers the gelation threshold to 60°C–65°C, eliminating premature pre-gelation inside automated confectionery filling loops and transfer valves.

Q2: What is the thermodynamic syneresis control limit of this Bulk HM Apple Pectin Agent when exposed to mechanical shear and oven thermal profiling in high-acid baker’s fruit fillings?

A2: Calibrated to a strict 150 ± 5 USA-SAG gel strength, the carbohydrate lattice cross-links into a resilient, hydrogen-bonded molecular grid under standard processing shear. This network tightly binds unbound water, suppressing phase separation and fluid weeping under core baking thermal profiles up to 200°C (392°F). This operational resilience prevents industrial boiling-over, volume contraction, and moisture migration into the surrounding pastry crust.

Q3: What are the exact fluid cooling limits and pH processing thresholds required to inhibit irreversible pre-gelation in an Industrial E440i Apple Pectin Purity Matrix configured for rapid-setting depositing lines?

A3: For a high-ester rapid-set formulation utilizing a DE 72% fraction, inhibiting premature gelation during mechanical agitation requires maintaining the core slurry temperature strictly above 85°C (185°F) while non-acidified. The regulating acidulent must be injected inline via static mixers or stirred in at the terminal phase immediately prior to casting. This sequence stabilizes the final matrix pH between 3.1 and 3.3, maintaining optimum fluid flow throughout the brief deposition window.
